导读：

江苏镇江铁矿产业形成“本地开采+港口加工”双核模式。本地矿区深部资源潜力可观，支撑长期开采，伴生硫、铜、钴等资源。港口区域依托长江水道，建设大型矿石混配中心，通过精选、破碎、球磨等出口铁精粉，推进资源好的利用，强化供应链韧性。某铁矿石破碎筛分采用世邦产品，PE颚式破碎机、HST单缸液压圆锥破碎机破碎，破碎处理能力每小时350吨，S5X圆振动筛筛分，筛分能力每小时600吨左右。项目整合本地深部铁矿资源（含硫、铜、钴等伴生矿）与长江港口物流优势，打造集开采、加工、出口于一体的循环经济示范项目。

一、项目概况与技术需求

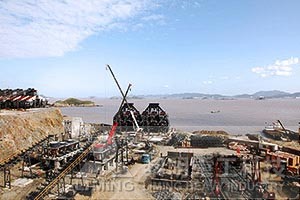

本项目位于江苏省镇江港区，是世邦黎明重工承接的重要冶金原料加工EPC总包工程。项目设计要求处理莫氏硬度5.8-6.5的铁矿石原矿，最大进料粒度1200mm，需产出0-10mm（占60%）和10-40mm（占40%）两种成品规格。设计年运行时间6000小时，系统可用率要求≥95%。

二、核心设备技术参数

    初级破碎单元 - PE系列颚式破碎机

    型号：PE1200×1500
    进料口尺寸：1200×1500mm
    最大处理能力：350t/h
    主轴转速：135r/min
    关键技术：
    • 重型合金钢铸造动颚体
    • 液压调整排料口（调整范围150-350mm）
    • 双肘板过载保护系统
    • SKF重型轴承支持

    二级破碎单元 - HST315单缸液压圆锥破

    腔型标准：C1粗碎型
    电机功率：315kW
    最大通过量：580t/h
    液压系统工作压力：4.5MPa
    核心技术：
    • 层压破碎原理（压缩比1:5）
    • 液压+机械双锁紧装置
    • 西门子PLC智能控制系统
    • 自动过铁保护功能

    筛分单元 - S5X3075-3圆振动筛

    筛网层数：3层
    筛面面积：22.5㎡
    振动频率：970r/min
    振幅调节范围：8-12mm
    技术特点：
    • 橡胶弹簧减震系统
    • 耐磨聚氨酯筛网（寿命≥8000h）
    • 双电机自同步驱动
    • 全封闭防尘设计

三、工艺流程与技术特点

    三段一闭路流程
    原矿→振动给料→颚破（粗碎）→圆锥破（中碎）→预筛分→闭路循环→成品筛分→成品仓

    关键技术突破点

    粒度级配控制技术（成品合格率≥98%）
    多段筛分工艺组合（精度±2mm）
    BNTM磨损监测系统（提前30天预警）
    粉尘综合治理方案（脉冲除尘+喷雾抑尘）

四、质量控制体系

    原料检测

    XRD矿物组成分析
    Bond功指数测定（12-14kWh/t）
    磨蚀指数测试（0.3-0.5g）

    过程控制

    在线粒度分析仪（Malvern Mastersizer）
    金属探测器灵敏度：φ10mm铁件
    皮带秤计量精度：±0.5%

    成品指标

    0-10mm粒度模数：2.6-2.8
    10-40mm颗粒形状指数：≤15%
    含粉量（<0.075mm）：≤5%
    含水率：≤3%

五、经济技术指标

    能耗指标

    综合电耗：16.8kWh/t
    吨钢耗：0.35kg/t
    水循环率：92%

成果与价值
产能与效率提升：项目投产后，铁精粉产能较传统工艺提高20%，年处理量达120万吨，支撑本地钢铁产业链对高品位原料的需求。
资源综合利用：通过伴生矿分选技术，实现硫、铜等资源的同步回收，综合利用率提升至92%，年增附加值超5000万元。
供应链优化：港口加工中心通过矿石混配与直装出口，将物流成本降低18%，出口铁精粉市场覆盖东南亚及欧洲。
技术优势
自动化与可靠性：HST圆锥破碎机集成智能过载保护系统，可自动识别并排出金属杂质，减少停机时间；PE颚式破碎机采用液压润滑系统，维护周期延长30%。
环保与节能：设备配置正压防尘系统，粉尘排放浓度＜10mg/m³，符合超低排放标准；层压破碎技术使能耗降低25%，单位电耗≤18kWh/t。
定制化服务：世邦提供全生命周期运维支持，包括远程监控、备件储备及定期技术升级，保障生产线连续稳定运行。
行业意义
该项目是世邦集团响应国家“双碳”战略的标杆案例，通过智能化设备与工艺创新，推动铁矿石加工向绿色化、集约化转型。其“开采-加工-物流”一体化模式为长江沿线矿产资源开发提供了可复制的范本，助力区域经济高质量发展。
