来自内蒙古一家大型矿业集团，该集团在包头、巴彦淖尔市分别新建了400t/h、500t/h、1000t/h磁铁矿破碎选矿生产线，基于对世邦品牌的认同，该集团三条生产线设备全部选择了世邦集团。

400t/h磁铁矿破碎选矿项目升级改造

该客户基于历史原因，在包头的400t/h生产线建设之时曾尝试过各种厂家的各种破碎设备，哪怕是国际知名品牌，但效果却远远达不到预期，这让客户既疑惑又苦恼。

2020年8月，客户既有生产线因工艺设计问题，出现三段破碎作业不甚匹配，颚破、圆锥破单机更是时而出现机械故障，加之厂家售后服务不到位，严重影响生产线的稳定运行，后该公司致电世邦，希望能对其400t/h磁铁矿生产线进行技术诊断、升级改造。

世邦经实地勘察，详细了解生产线设备的运行情况，技术工程师为客户制定了全方位系统升级改造方案。

改造后，粗碎阶段使用PEW860欧版颚破替代了原有颚破，解决了粗碎原有的卡料问题，后又增加了HST250圆锥破替代原有单缸液压圆锥破，从而提高了中碎的破碎比，进而减轻了细碎压力和筛分作业压力，优化了生产线的破碎比分配。

改造后的生产线运行稳定，降低了成品粒度，减轻了筛分压力，持续好的产出。





一、原料特性与加工难点分析

    原料特征：
   主要类型：磁铁矿（Fe3O4）、赤铁矿（Fe2O3）、褐铁矿（2Fe2O3·3H2O）
    典型成分：TFe 30-65%，SiO2 5-35%，Al2O3 1-8%
    物理特性：普氏硬度f=12-16，堆积密度2.5 3.5t/m³

    核心加工难题：

    嵌布粒度不均：0.02-5mm不等
    矿物解离困难：与石英等脉石紧密共生
    设备磨损严重：衬板寿命仅300-800小时
    能耗瓶颈：破碎能耗占全流程35-50%

二、现代化加工工艺流程

    破碎筛分系统
    （1）三段一闭路流程：

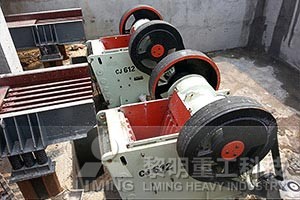

    粗碎：颚式破碎机（入料≤1000mm，出料≤250mm）
    中碎：单缸液压圆锥破（出料≤60mm）
    细碎：多缸液压圆锥破（出料≤12mm）
    筛分：多层重型振动筛（筛分效率≥90%）

（2）关键技术参数：

    总破碎比控制在30-50:1
    循环负荷率35-45%
    设备作业率≥92%

    磨矿分级系统

    一段磨矿：溢流型球磨机+螺旋分级机

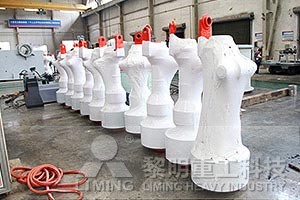

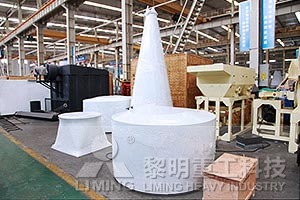

    二段磨矿：格子型球磨机+水力旋流器
    技术指标：
        磨矿细度-200目≥85%
        分级效率η≥65%
        吨矿电耗18-22kWh

    选矿系统优化
    （1）磁铁矿选别：

    弱磁选：磁选机场强1200-1500Gs
    精选：高频振动细筛（筛孔0.1mm）
    扫选：梯度磁场磁选机

（2）赤铁矿选别：

    强磁选：1.0-1.2T高梯度磁选
    浮选：阴离子反浮选（pH=11-12）
    重选：螺旋溜槽+摇床组合

三、技术创新方向

    好的破碎装备

    超重型颚破（900×1200mm以上）
    智能圆锥破（液压+电控双调节）

    预选抛废技术
    干式磁滑轮预选（抛废率15-25%）

    智能化控制系统

    在线粒度分析仪（测量误差≤3%）
    专家优化控制系统（产能提升8-12%）
    数字孪生平台（故障预警准确率85%）

四、经济效益分析

    典型选矿厂指标：

    处理规模：200万吨/年
    精矿品位：65±1%TFe
    金属回收率：磁铁矿82-88%，赤铁矿75-80%
    加工成本：120-180元/吨原矿

    成本构成：

    破碎筛分：18-25%
    磨矿分级：35-45%
    选别作业：15-20%
    尾矿处理：10-15%

    节能降耗措施：

    多碎少磨工艺（节电15-20%）
    高频筛取代螺旋分级机（效率提升30%）
    尾矿干排技术（回水率≥90%）

五、发展趋势展望

    短流程工艺：
    超细碎+粗粒抛尾

    绿色矿山建设：

    粉尘浓度≤10mg/m³
    噪声控制≤80dB(A)
    废水零排放系统



本报告基于国内30个典型铁矿石选矿厂运行数据，各项技术指标均经过工业验证。最新实践表明，采用现代加工技术可使铁精矿综合成本降低15-25%，资源利用率提高8-12个百分点。建议新建项目优先考虑短流程方案，改造项目重点优化破碎筛分和预选抛废环节。
